MAS-3
Outer diameter: φ6 mm
Maximum resolution: 4,096 (12-bit)
Serial communication (SSI format)
Contact
Absolute Encoder
ABSOLUTE ENCODER
Absolute Encoder
Rotary absolute encoders in φ6–φ100 mm with single-turn and multi-turn options, high-resolution serial outputs, and power-on position retention.
Magnetic Absolute Encoder (Singleturn)
MMS-10
Outer diameter: φ13 mm
Maximum resolution: 1,024 (10-bit)
Serial communication (SSI format)
Multi Turn Absolute Encoder (Multi-turn)
MAS-36-MT
Outer diameter: φ46 mm
Single-turn resolution: 1,000
Multi-turn factor: 256 (−128 to 127)
No battery backup
Equivalent to E6C-NN

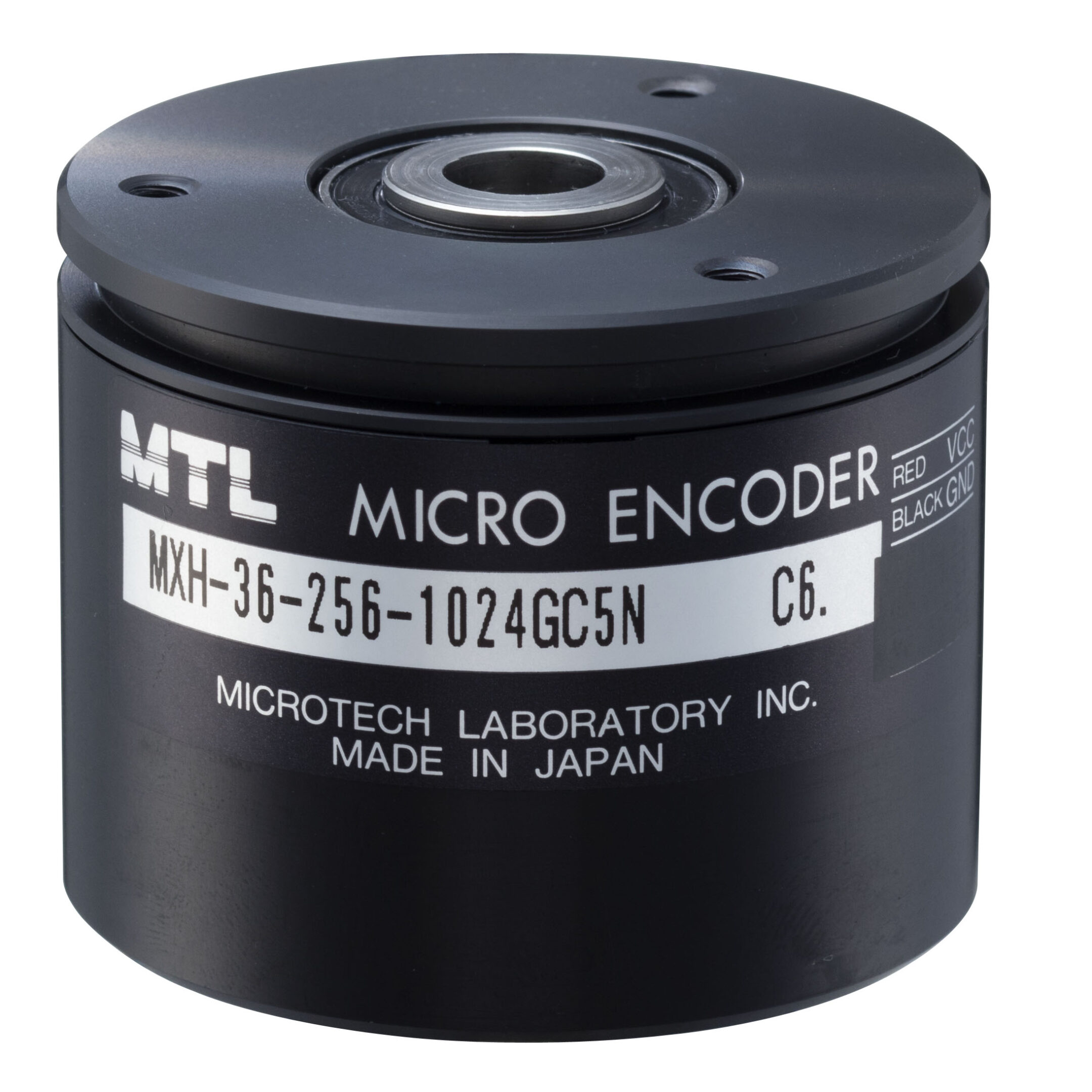

MXH-36 Discontinued
Discontinued
Outer diameter: φ46 mm
Single-turn resolution: 1,024
Multi-turn factor: 256
Hollow-shaft type (φ8 mm)
No battery backup

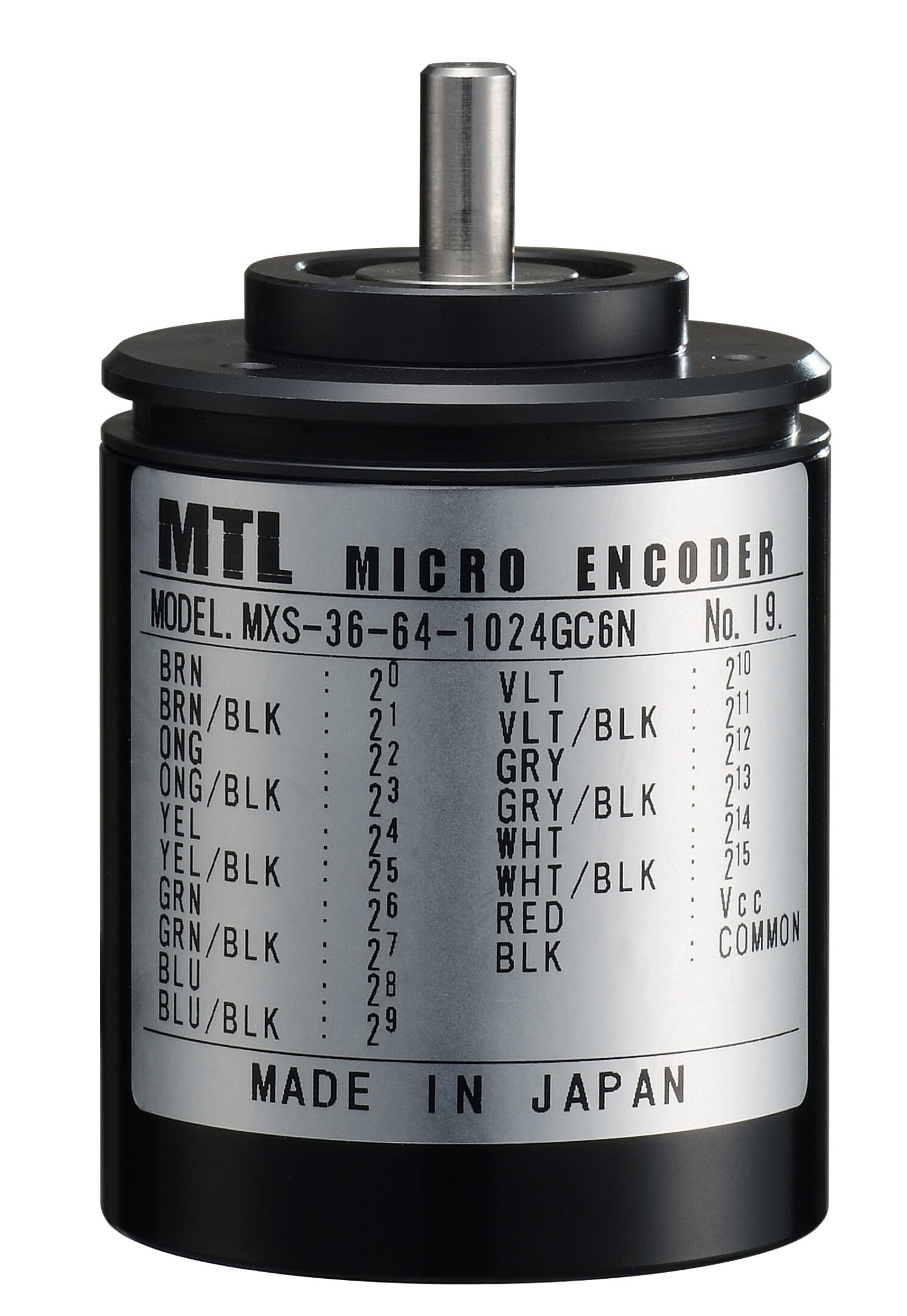

MXS-36 Discontinued
Discontinued
Outer diameter: φ46 mm
Single-turn resolution: 1,024
Multi-turn factor: 64
No battery backup
MXS-42
Outer diameter: φ52 mm
Single-turn resolution: 4,096
Multi-turn factor: 100
Environment-resistant option available
No battery backup
Optical Absolute Encoder (Single Turn)
MA-17
Outer diameter: φ20 mm
Maximum resolution: 1,024 (10-bit)

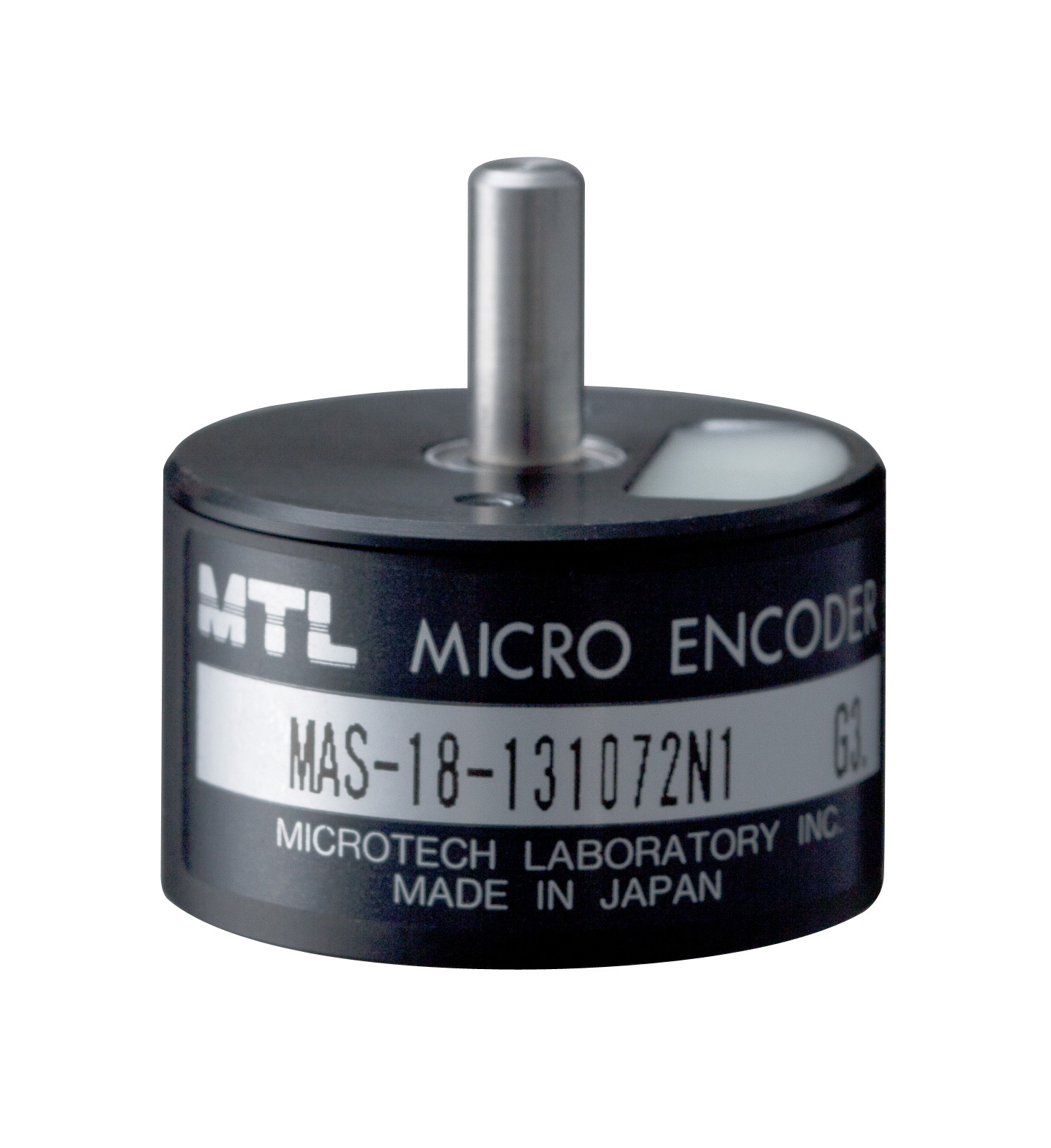

MAS-18
Outer diameter: φ25 mm
Maximum resolution: 262,144 (18-bit)
Serial communication (SSI format)

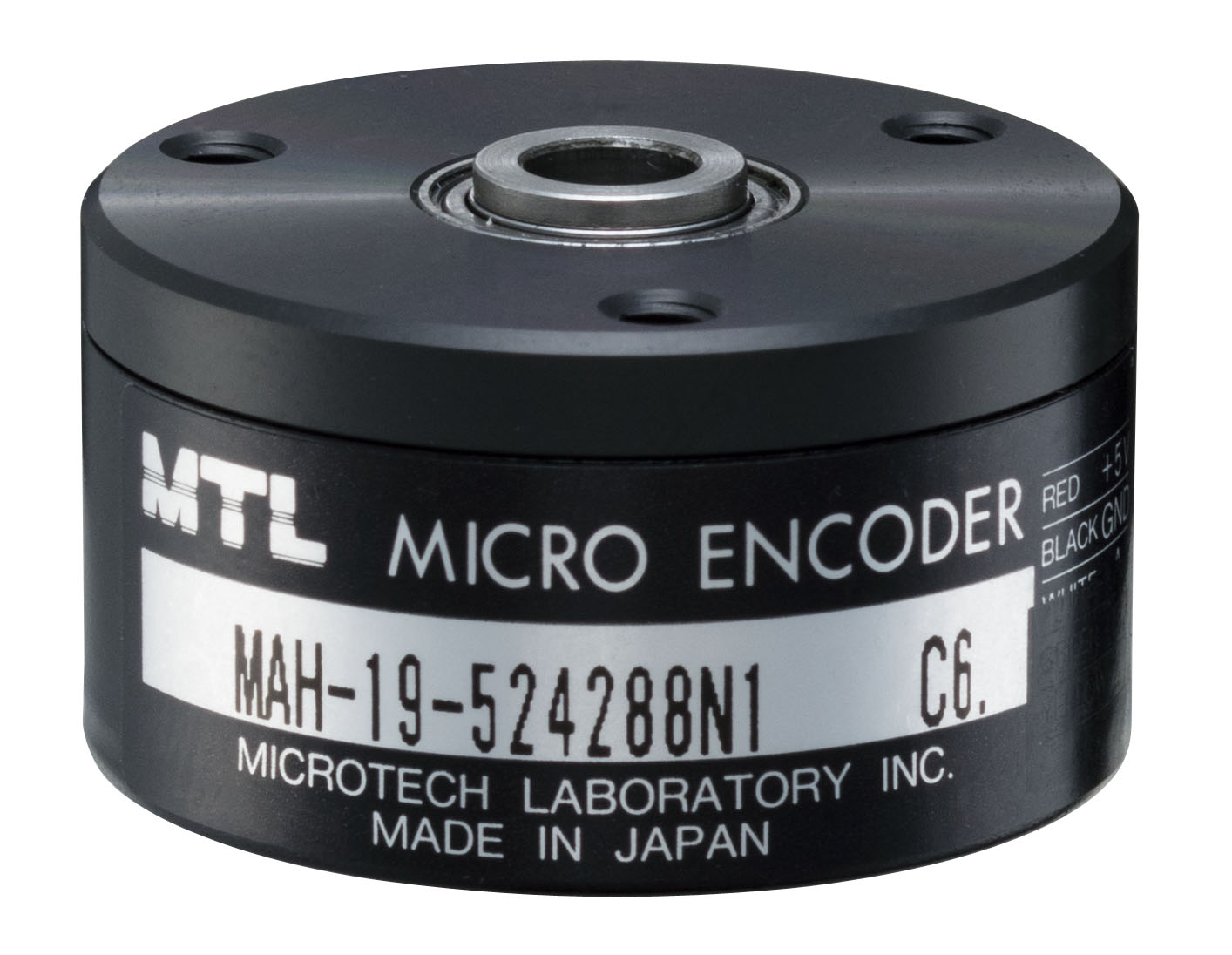

MAH-19
Outer diameter: φ30 mm
Maximum resolution: 524,288 (19-bit)
Serial communication (SSI format)
Hollow-shaft type (φ6 mm)

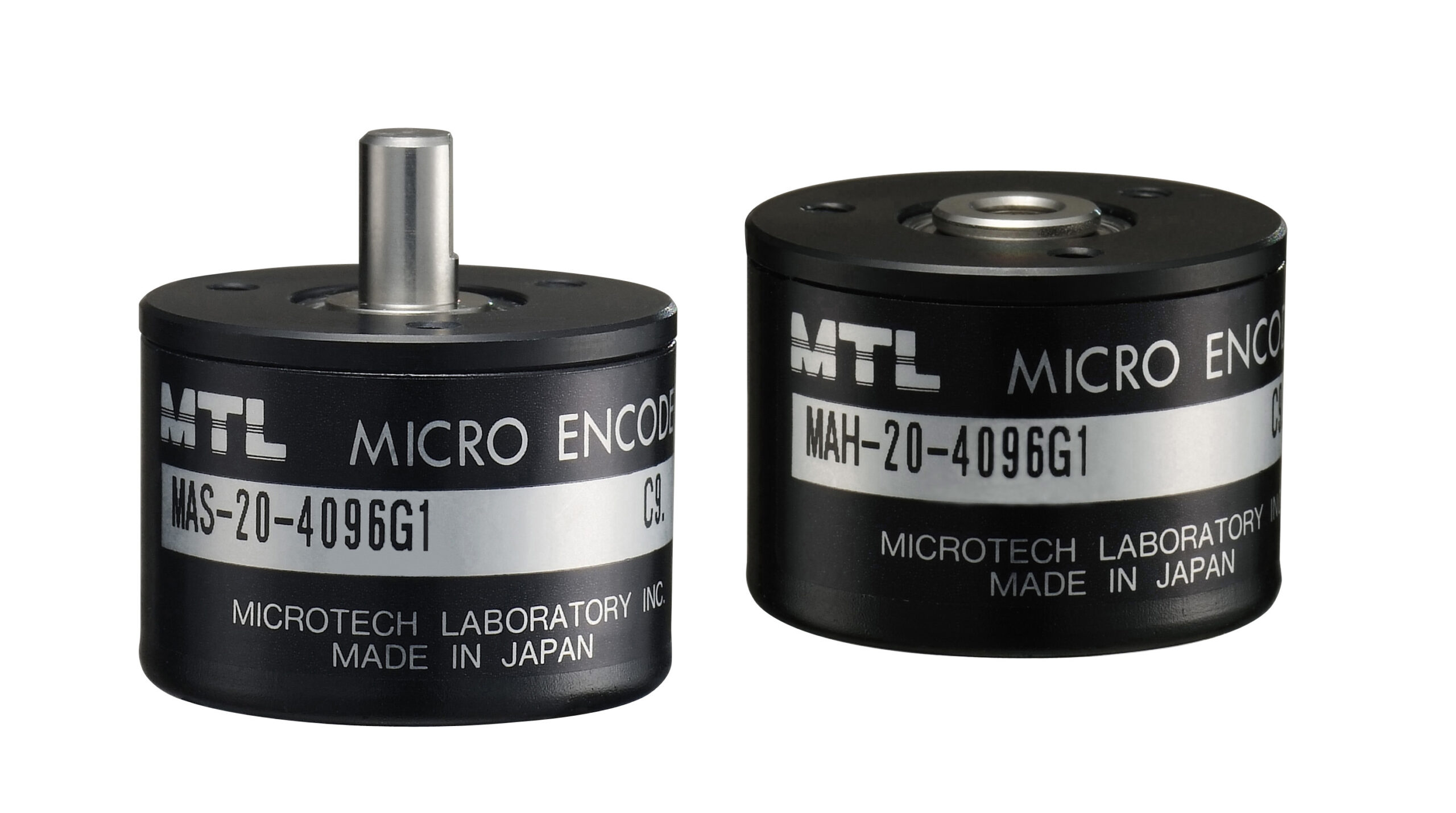

MA-20
Outer diameter: φ32 mm
Maximum resolution: 4,096 (12-bit)
Available types: single-shaft, hollow-shaft

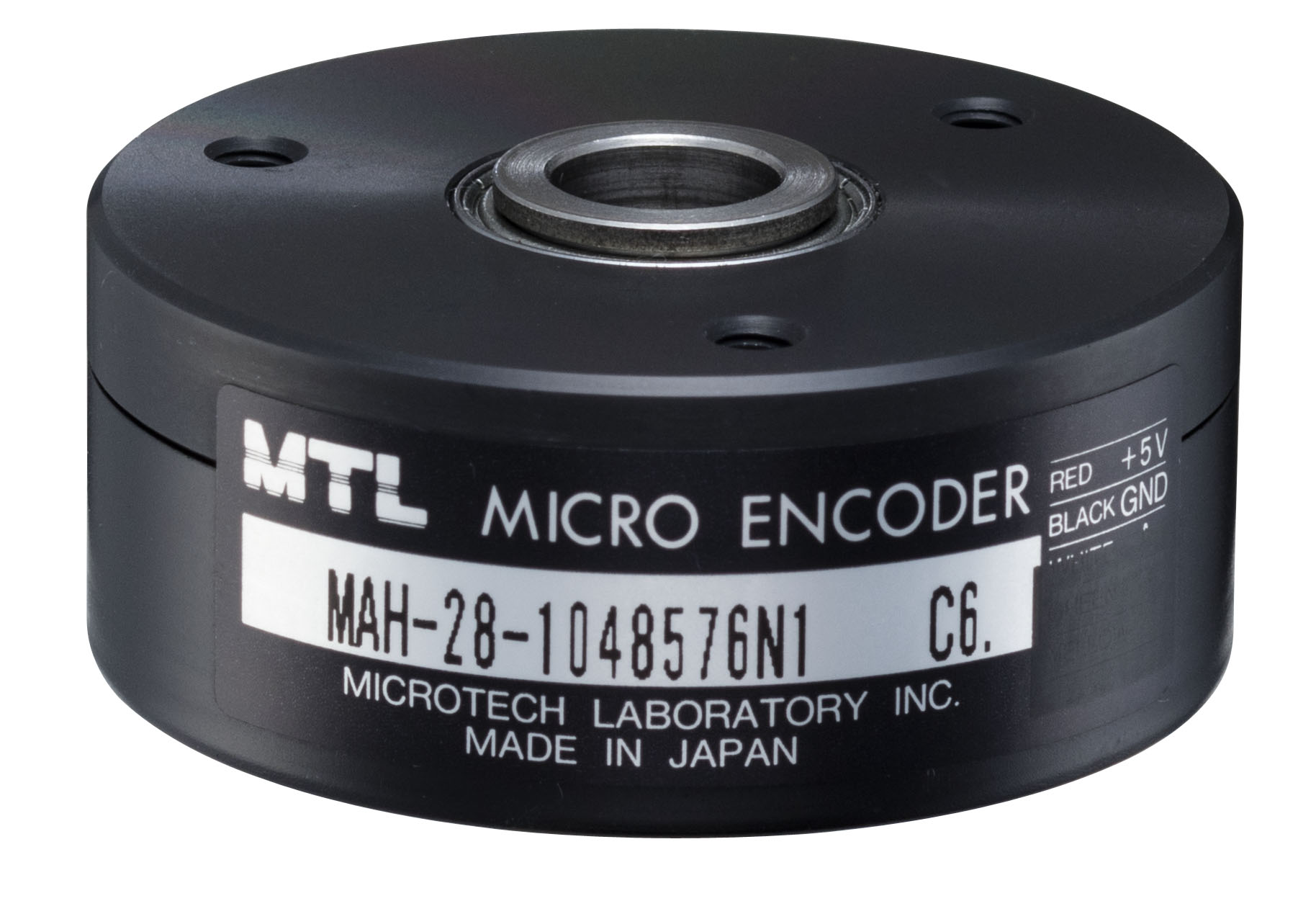

MAH-28
Outer diameter: φ40 mm
Maximum resolution: 1,048,576 (20-bit)
Serial communication (SSI format)
Hollow-shaft type (φ8 mm)
MA-36-20bit
Outer diameter: φ46 mm
Maximum resolution: 1,048,576 (20-bit)
Serial communication (SSI format)
Available types: single-shaft, hollow-shaft
MA-36
Outer diameter: φ46 mm
Maximum resolution: 16,384 (14-bit)
Environment-resistant design
Available types: single-shaft, hollow-shaft

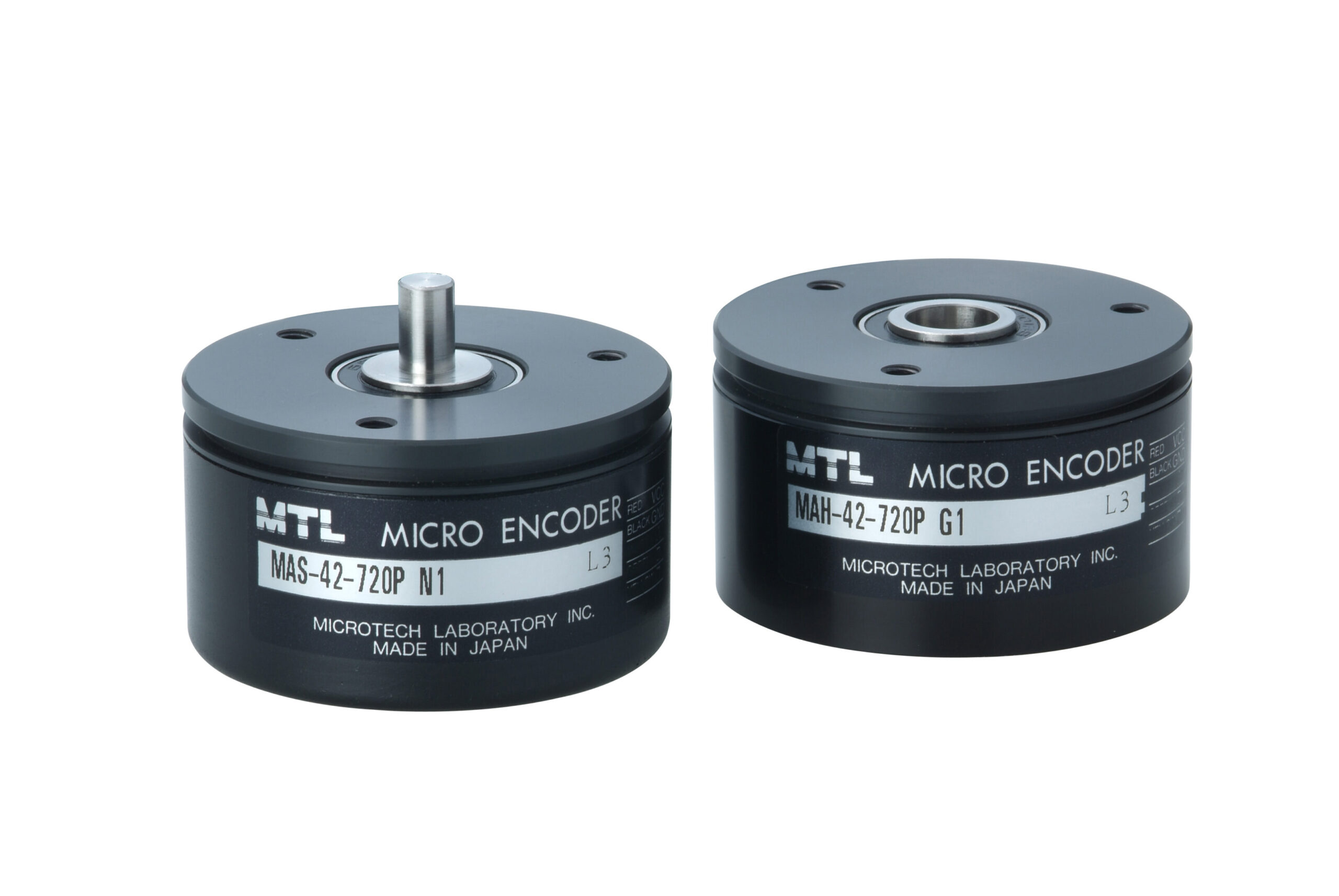

MA-42
Outer diameter: φ52 mm
Maximum resolution: 4,096 (12-bit)
Environment-resistant design
Available types: single-shaft, hollow-shaft

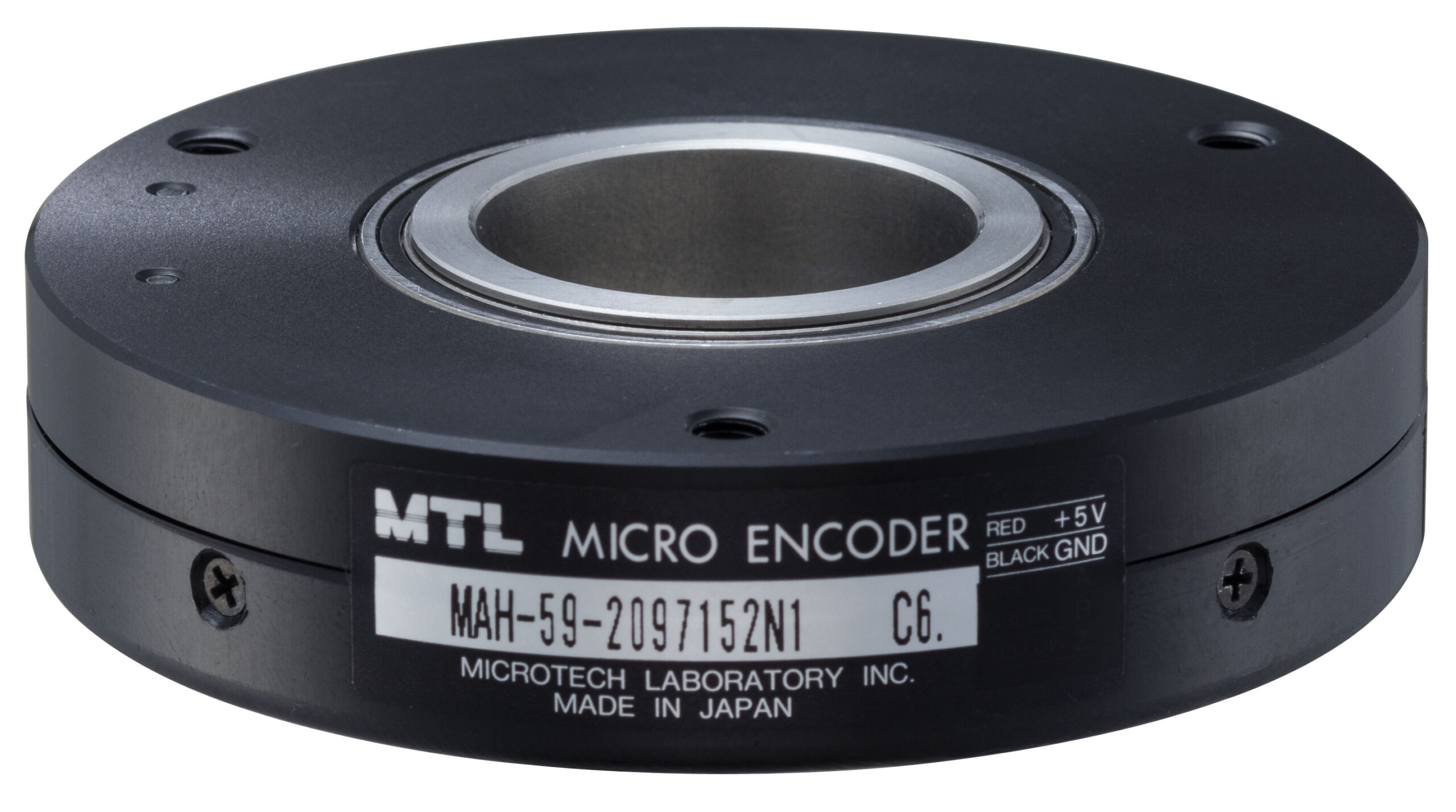

MAH-59
Outer diameter: φ70 mm
Maximum resolution: 2,097,152 (21-bit)
Serial communication (SSI format)
Hollow-shaft type (φ25 mm)

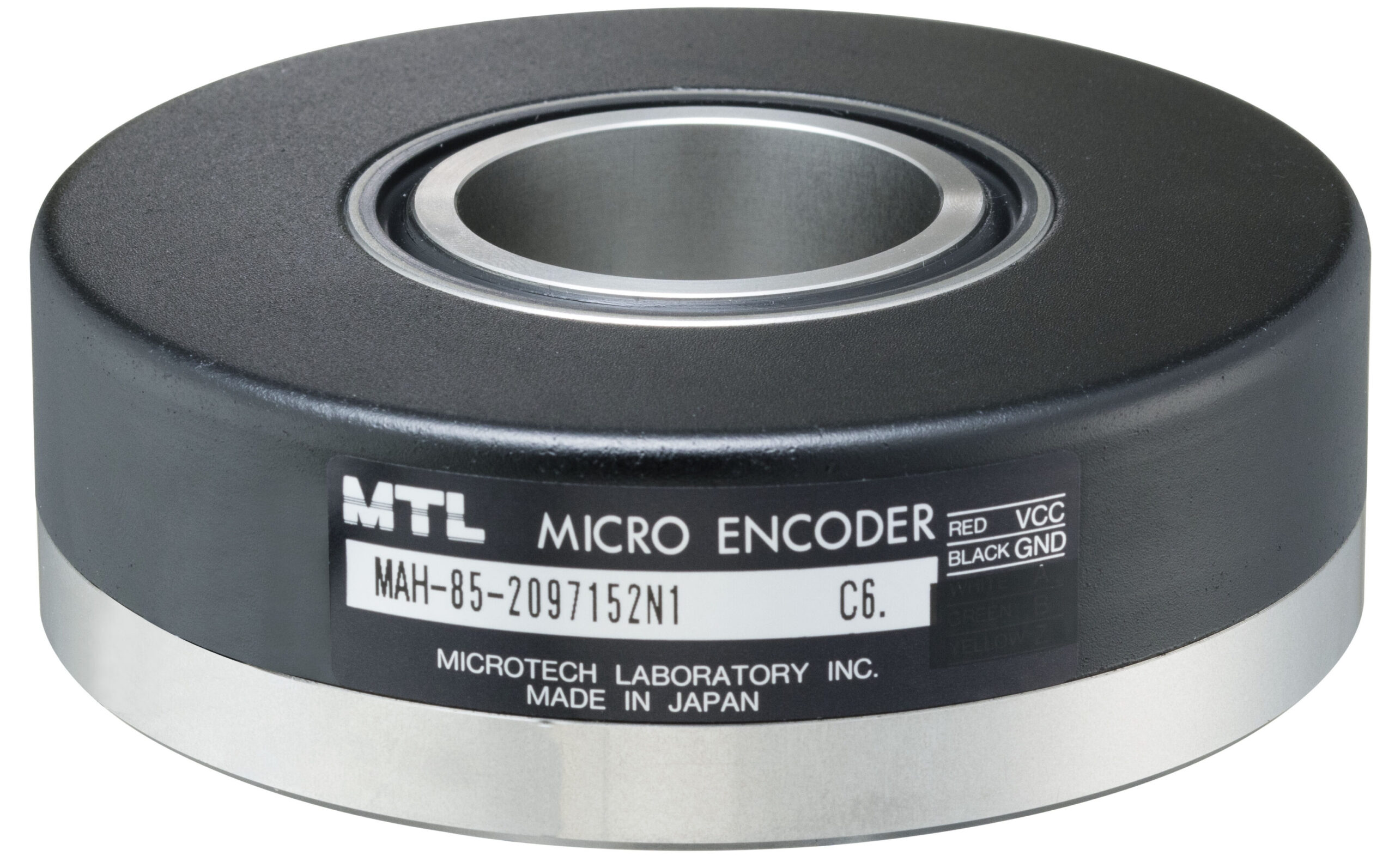

MAH-85
Outer diameter: φ100 mm
Maximum resolution: 2,097,152 (21-bit)
Serial communication (SSI format)
Hollow-shaft type (φ36 mm)
