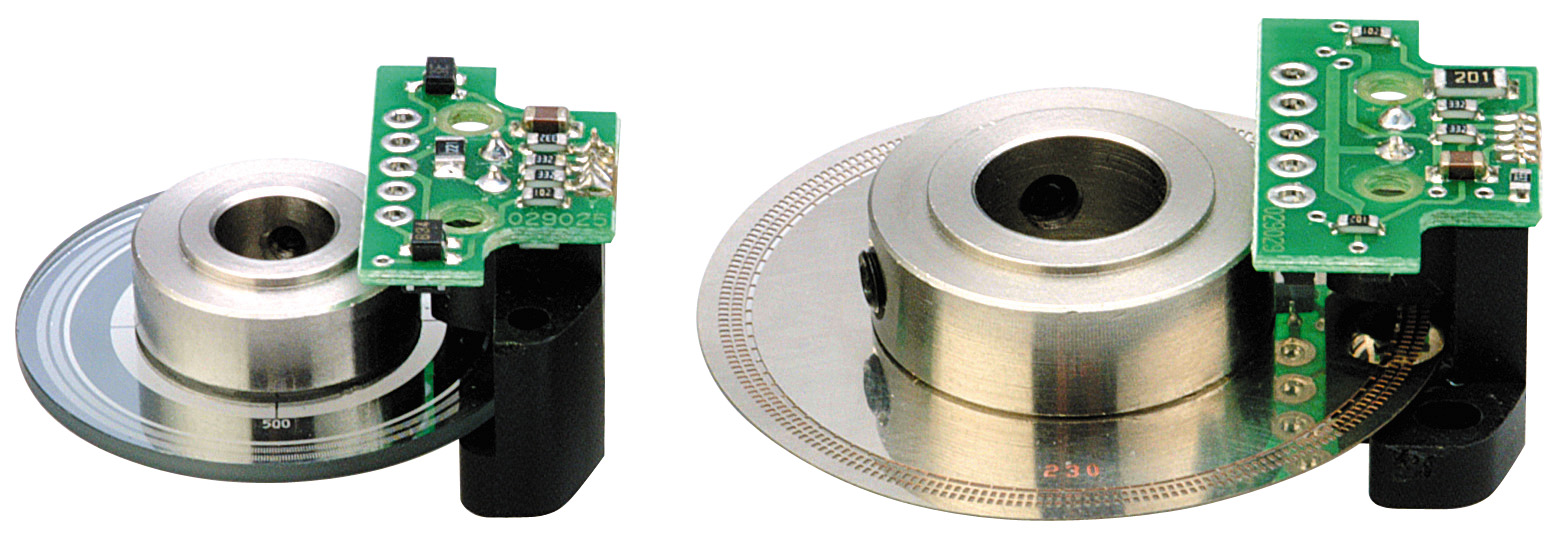

MG Series
Outer diameter: φ22 mm, φ31.6 mm
Maximum resolution: 2,000 P/R
Separate disk and sensor head, ideal when minimizing drag torque.
Contact
Incremental Encoder
INCREMENTAL ENCODER
Incremental Encoder
Wide range of incremental rotary encoders for motion feedback, available in miniature, hollow-shaft, and low-profile formats.
Encoder Modules
Motor Mounting Encoder
Outer Diameter ≤ 20 mm
MES-3P Series
Outer diameter: φ5 mm
Maximum resolution: 1,024 P/R
World’s smallest-class encoder
MES-6P Series
Outer diameter: φ7.5 mm
Maximum resolution: 2,000 P/R
Suitable for installation in tight spaces

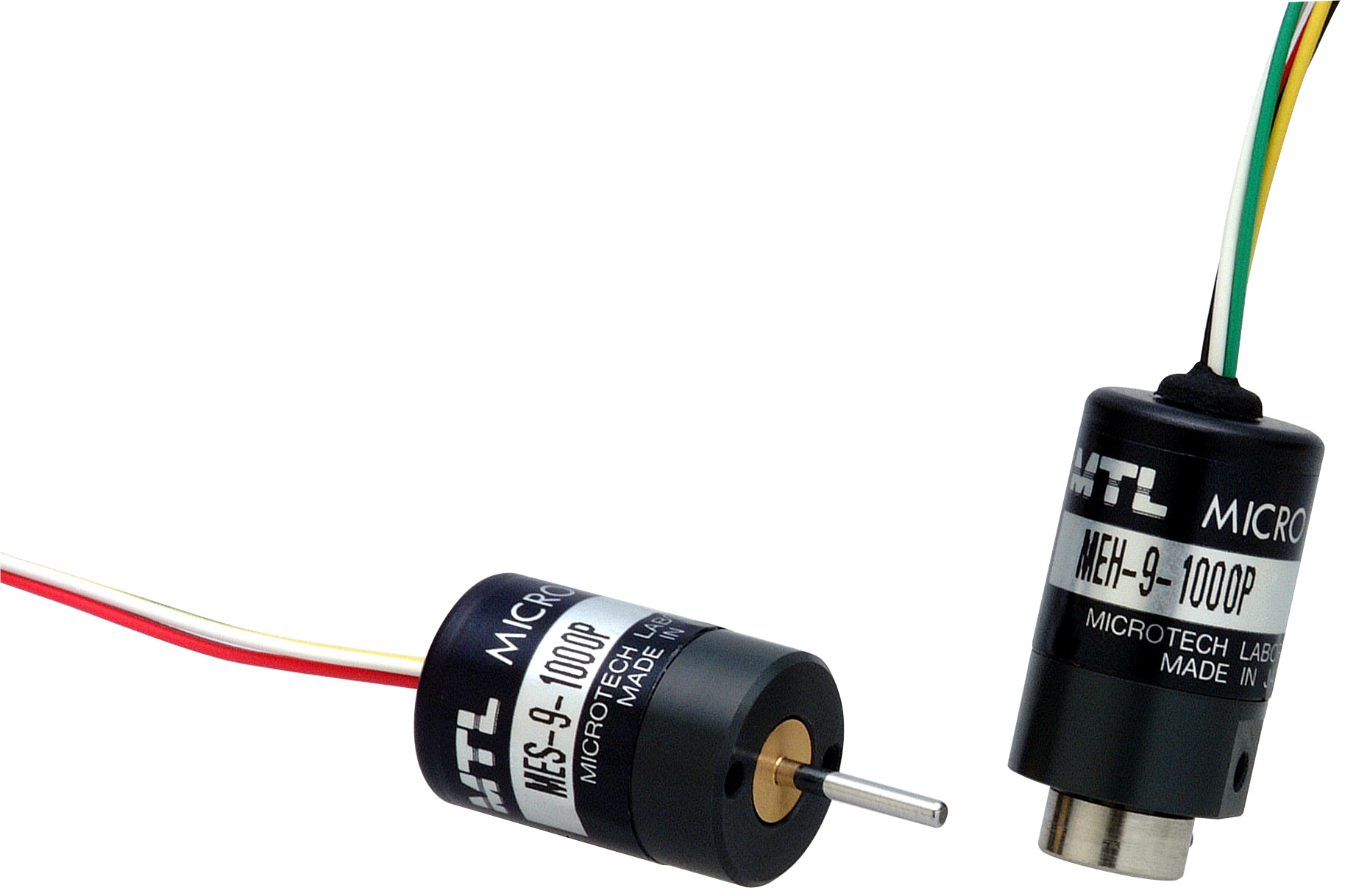

ME-9P Series
Outer diameter: φ13 mm
Maximum resolution: 16,000 P/R
Compact high-resolution series
ME-12P Series
Outer diameter: φ21 mm
Maximum resolution: 72,000 P/R
Hollow diameter: φ2.6 mm
ME-17P Series
Outer diameter: φ21 mm
Maximum resolution: 72,000 P/R
Hollow diameter: φ2.6 mm
Outer Diameter 21–50 mm

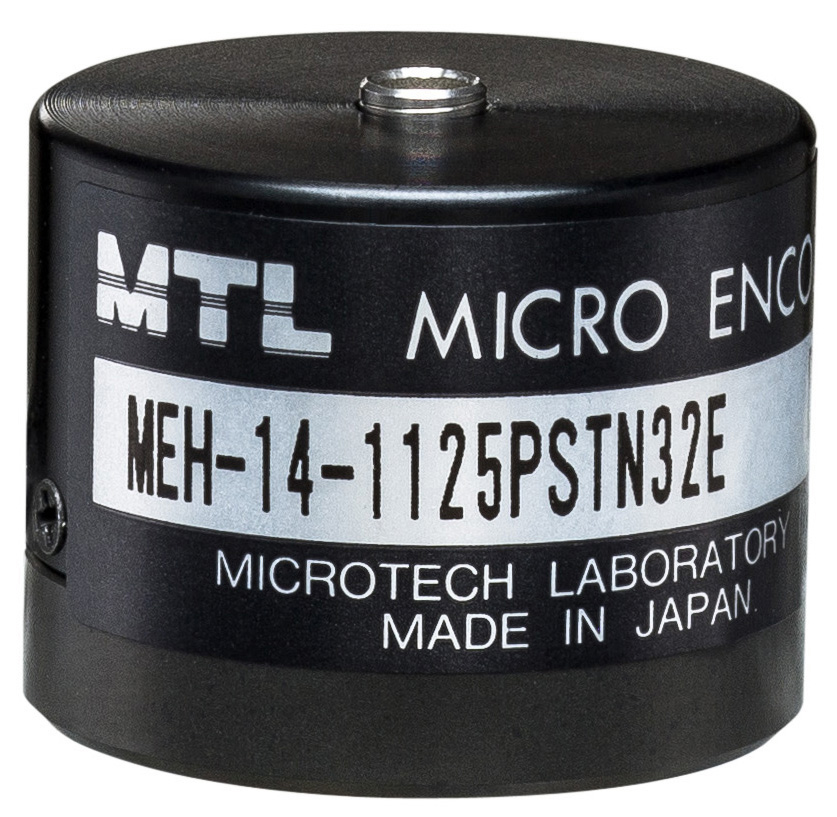

MEH-14 Series
Outer diameter: φ21 mm
Maximum resolution: 72,000 P/R
Hollow diameter: φ2.6 mm
MEH-19 Series
Outer diameter: φ30 mm
Maximum resolution: 108,000 P/R
Hollow diameter: φ5 mm

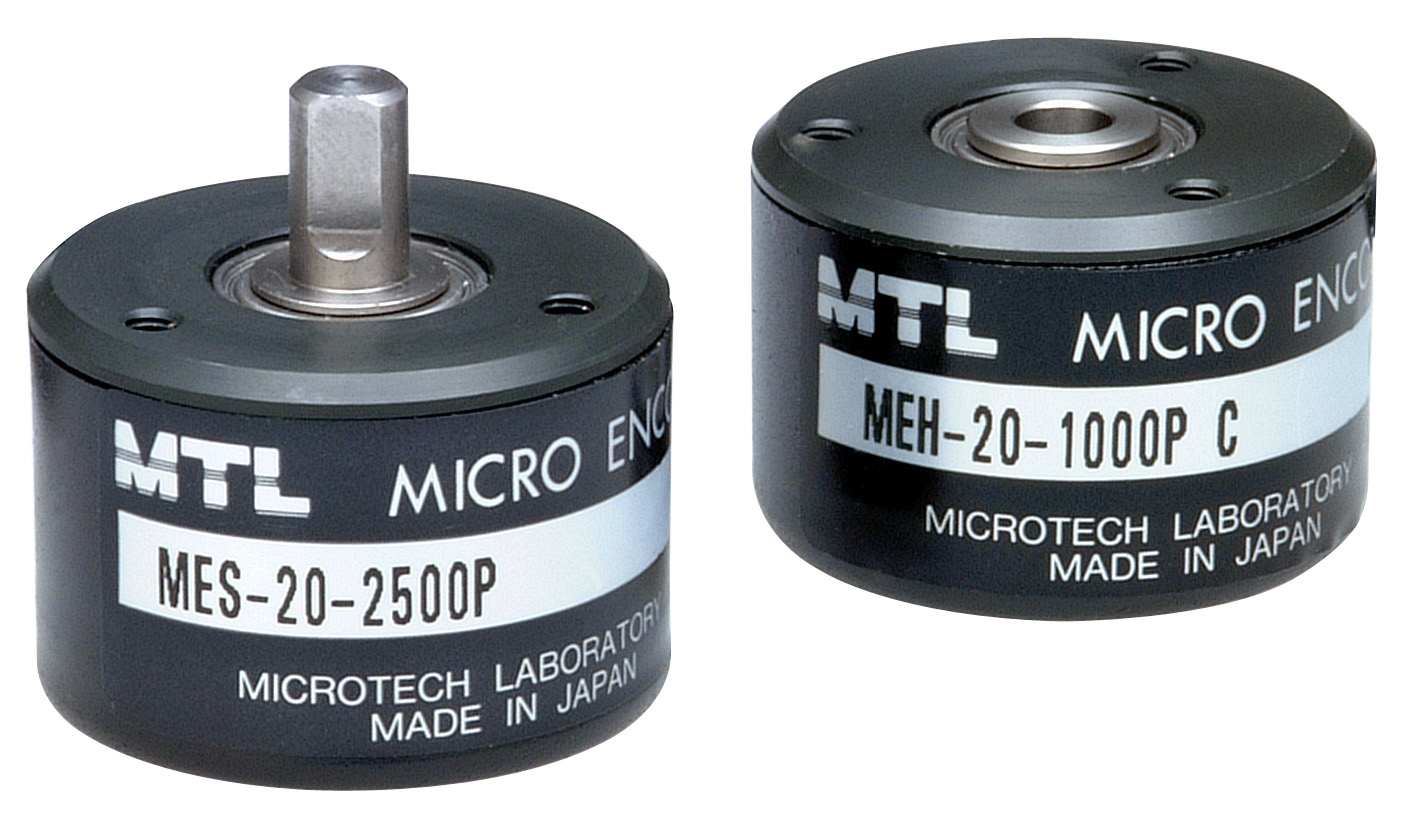

ME-20P Series
Outer diameter: φ32 mm
Maximum resolution: 144,000 P/R
Hollow diameter: φ5 mm
Available types: single-shaft, hollow-shaft, dual-shaft

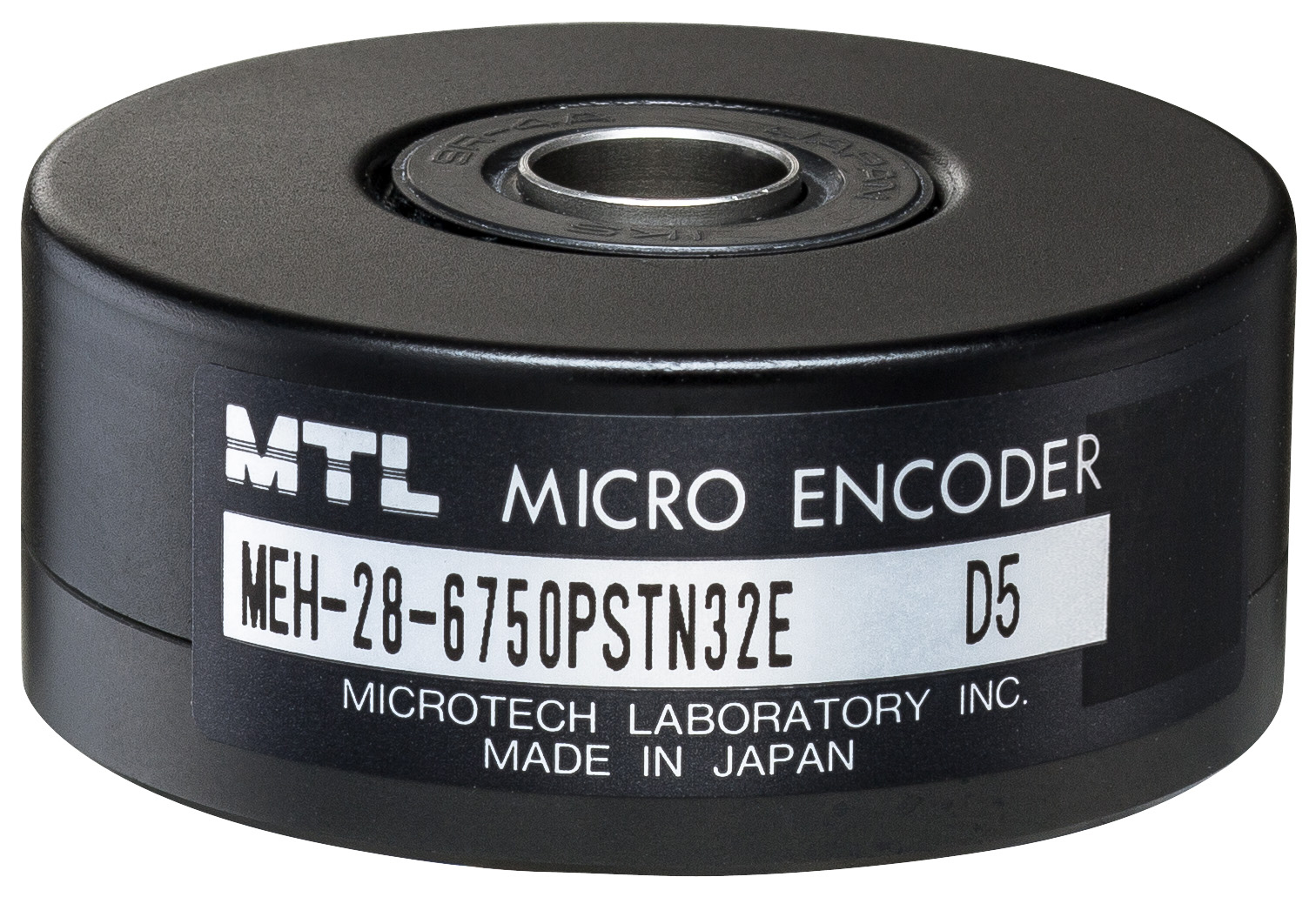

MEH-28 Series
Outer diameter: φ40 mm
Maximum resolution: 216,000 P/R
Hollow diameter: φ8 mm

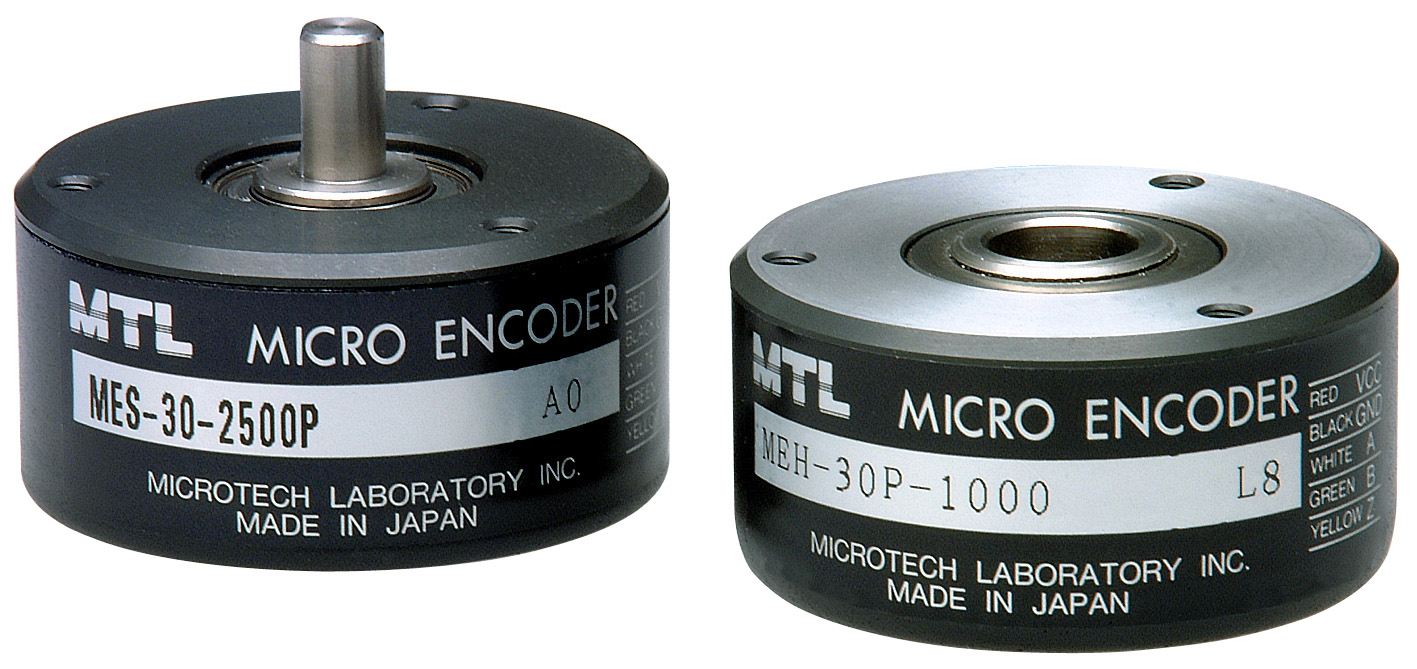

ME-30P Series
Outer diameter: φ44 mm
Maximum resolution: 216,000 P/R
Hollow diameters: φ8, φ10, φ12 mm
Available types: single-shaft, hollow-shaft, dual-shaft
Outside Diameter 51–200 mm

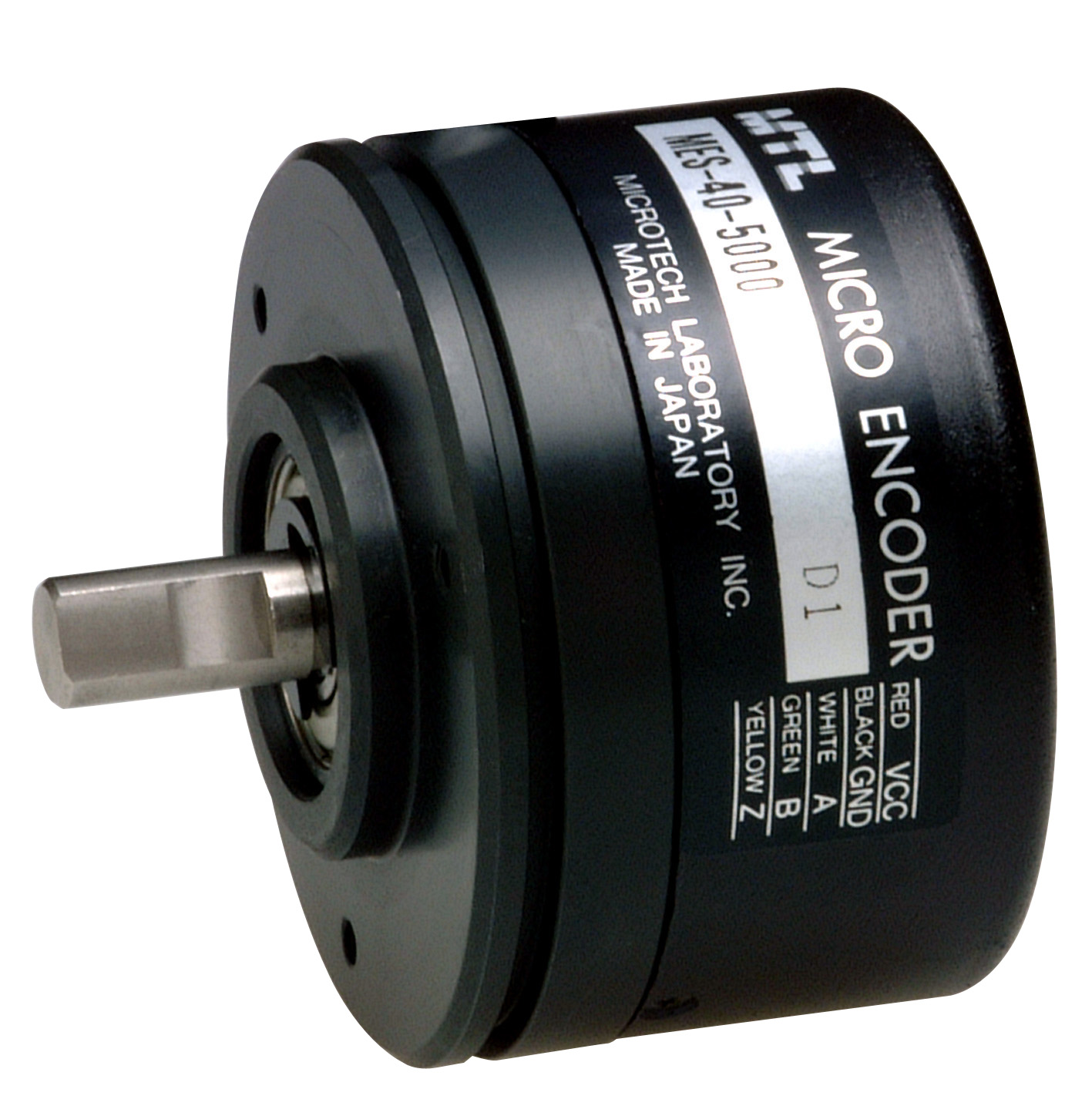

MES-40P Series
Outer diameter: φ56 mm
Maximum resolution: 300,000 P/R
MES-45 Series
Outer diameter: φ55 mm
Maximum resolution: 9,000 P/R
ME-50P Series
Outer diameter: φ65 mm
Maximum resolution: 216,000 P/R
Hollow diameter: φ12 mm (φ21 mm also available)

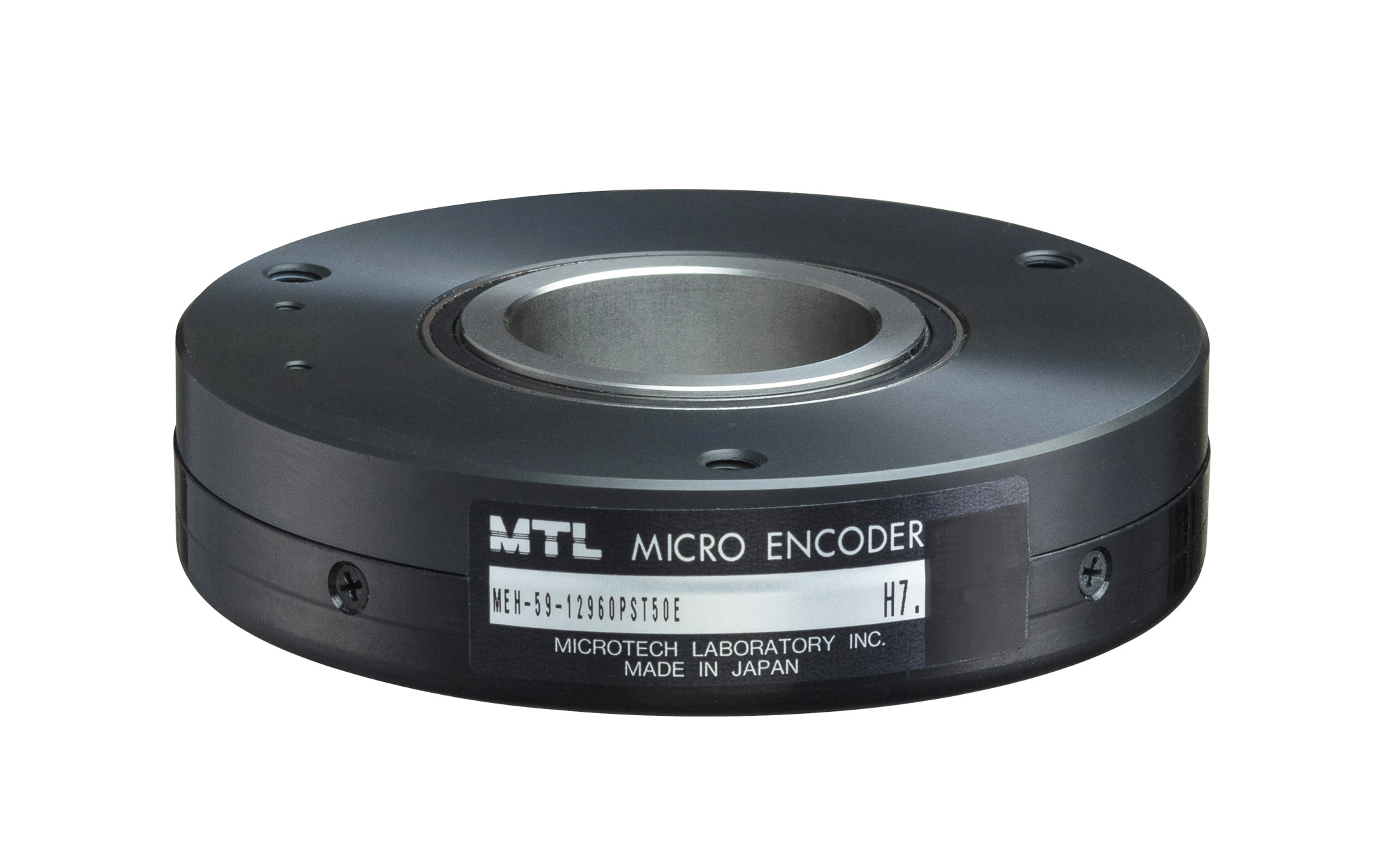

MEH-59 Series
Outer diameter: φ70 mm
Maximum resolution: 648,000 P/R
Hollow diameter: φ25 mm

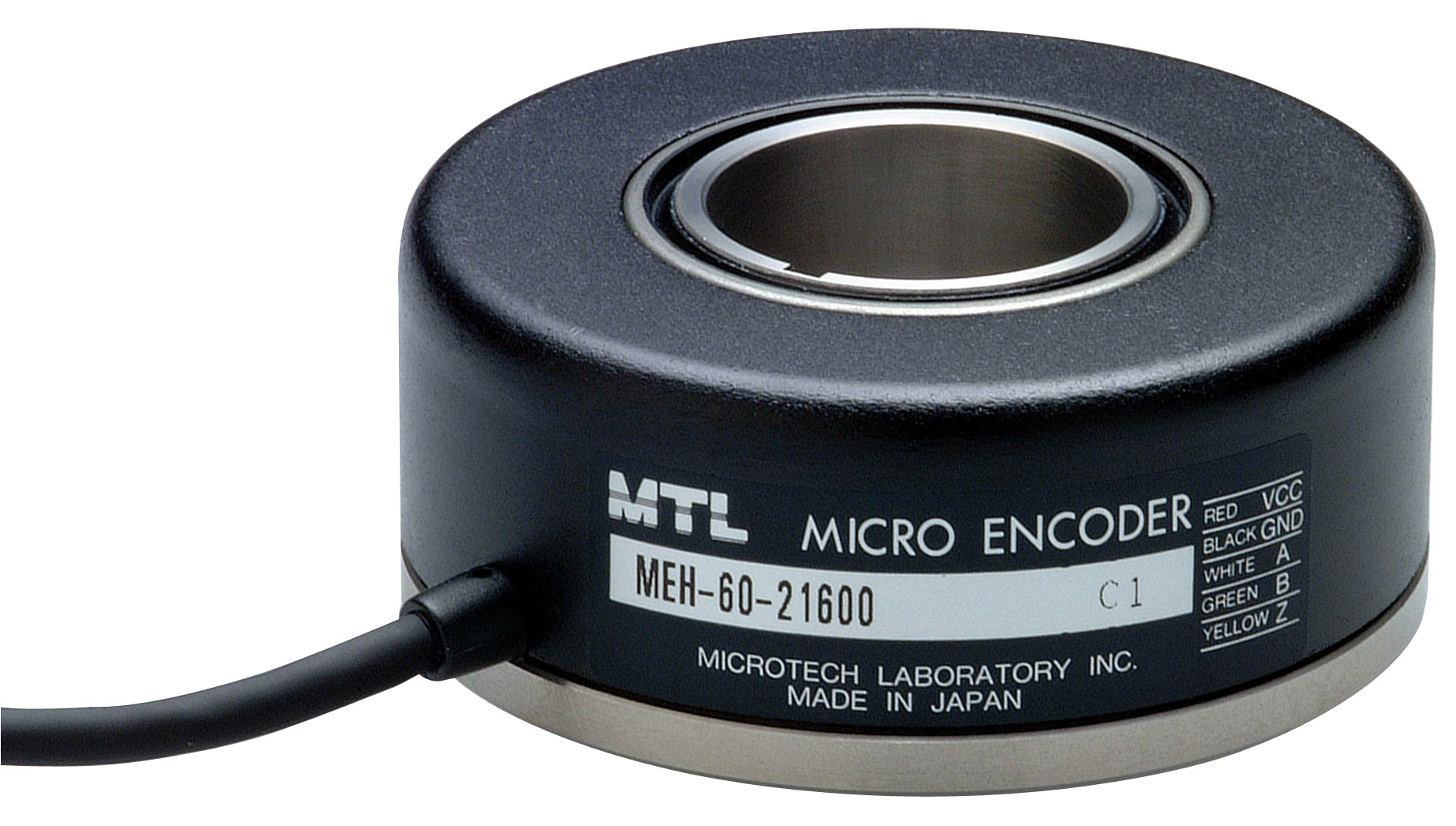

MEH-60P Series
Outer diameter: φ74 mm
Maximum resolution: 432,000 P/R
Hollow diameter: φ30 mm, φ21 mm (F1 only)
MEH-85P Series
Outer diameter: φ100 mm
Maximum resolution: 432,000 P/R
Hollow diameter: φ36 mm

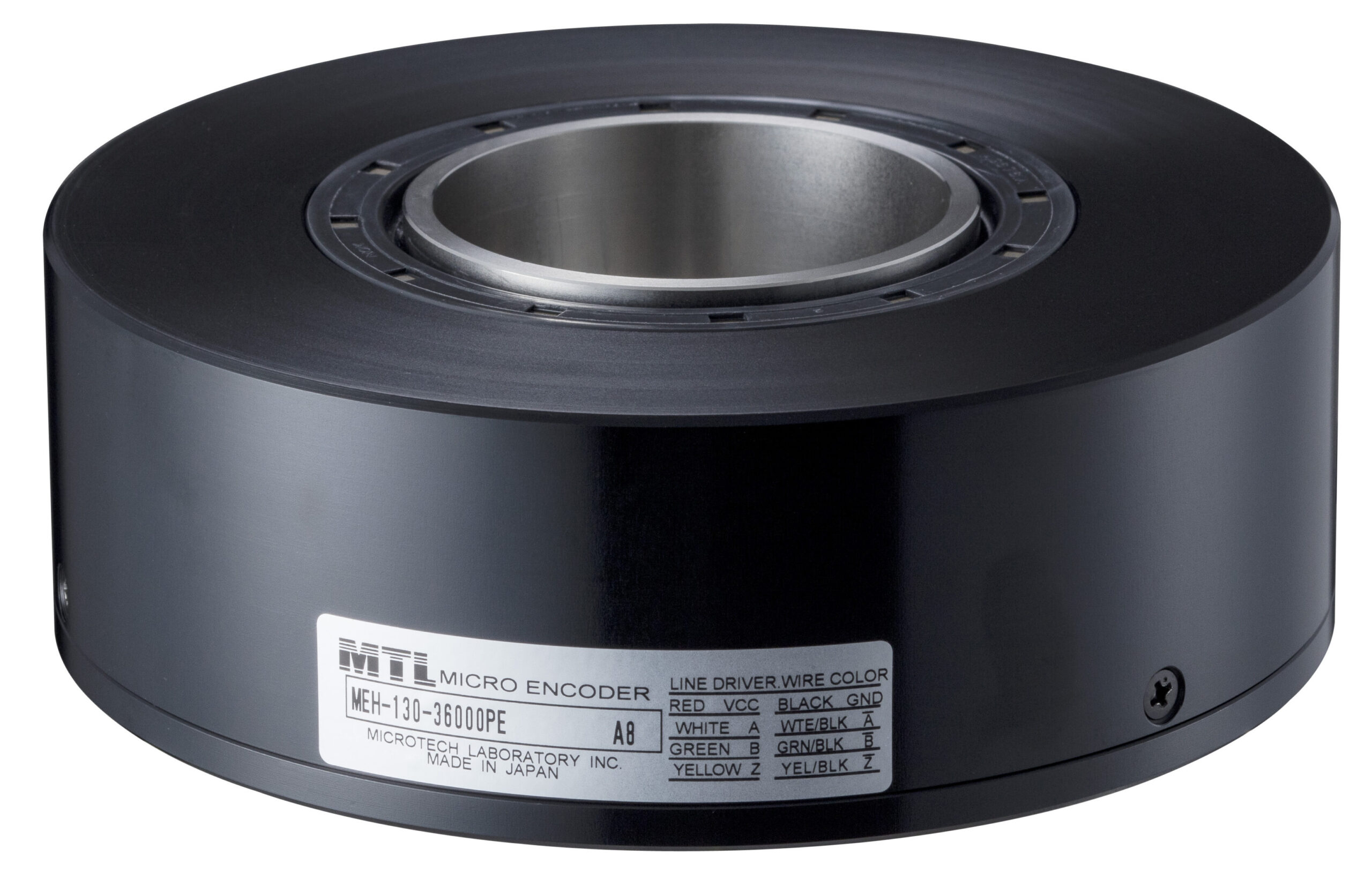

MEH-130P Series
Outer diameter: φ150 mm
Maximum resolution: 720,000 P/R
Hollow diameters: φ60 mm, φ75 mm

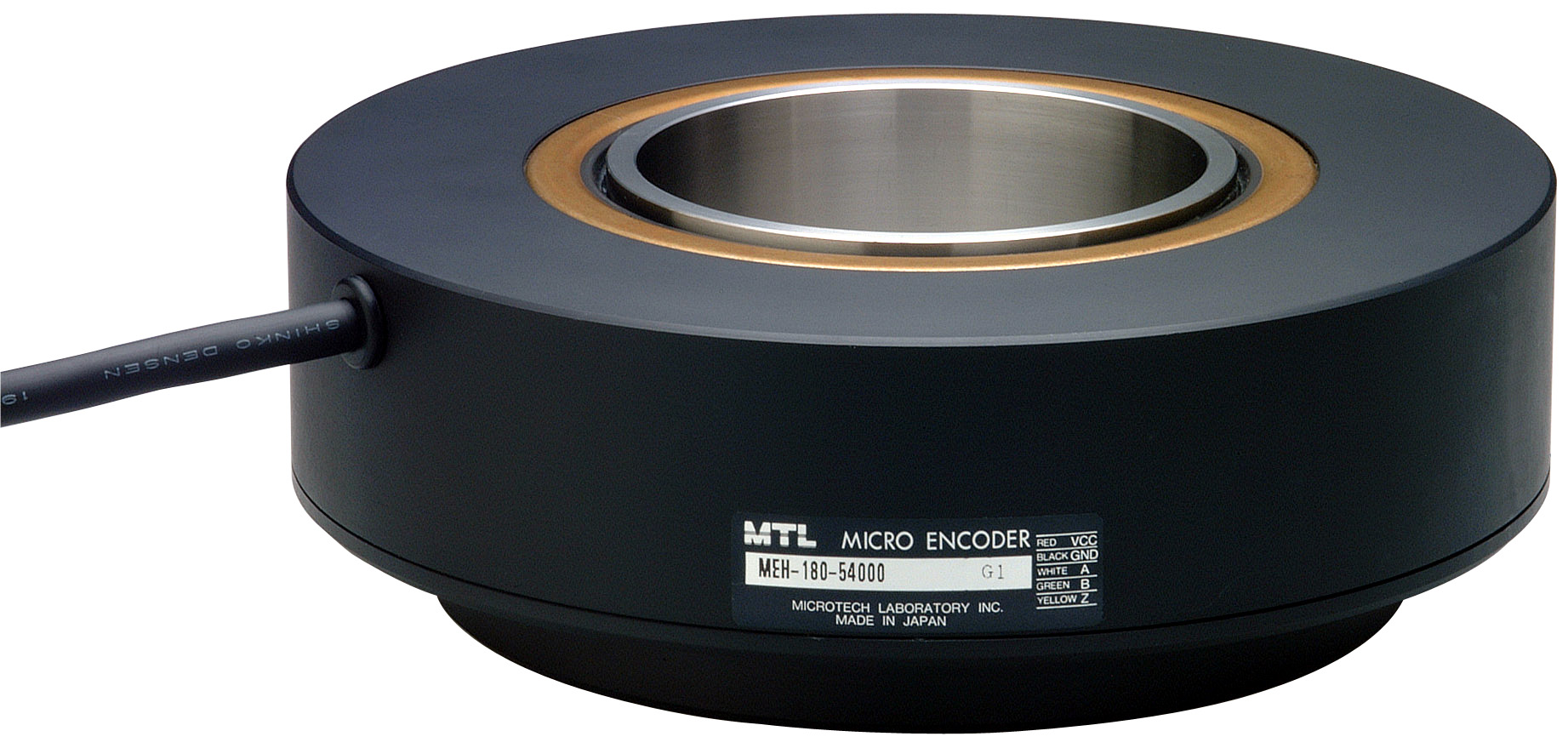

MEH-180P Series
Outer diameter: φ200 mm
Maximum resolution: 1,440,000 P/R
Hollow diameter: φ90 mm
Tapered Shaft Type
