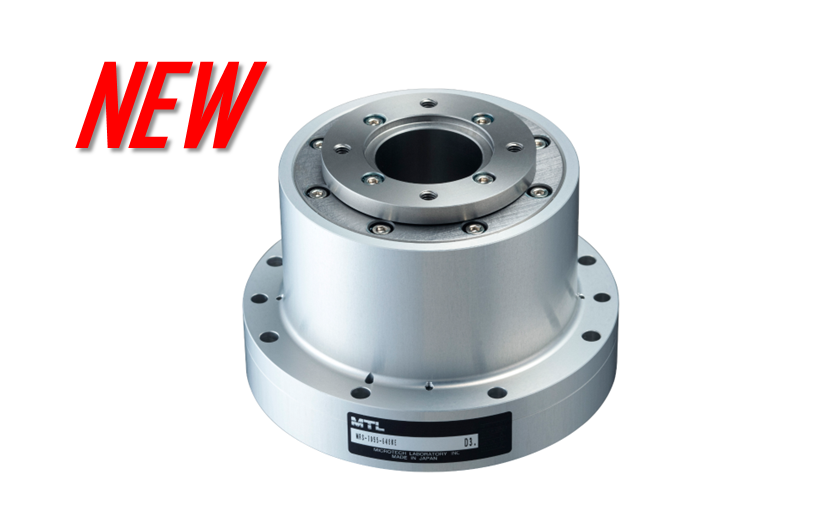

Specifications

Frame diameterφ70 mm
Body length56 mm
Peak torque3.1 N·m
Max speed200 rpm
Resolution2,592,000 P/R (after ×4) / 2,097,152 (21 bit)
Through-hole diameterφ25 mm
ModelMRS-7056
L1 length (mm)56

Dimensions

MRS-7056

Speed & Torque


MRS-7056


Note: The maximum rotational speed is limited by the encoder response frequency. Reducing the encoder resolution can extend the usable speed range.

UnitMRS-7056
Supply voltage (driver input)DCV24 (※1) / 48
Max speed (※2)rpm200
Rated speedrpm100
Peak torqueNm3.1
Continuous stall torqueNm1.0
Continuous rated torqueNm1.0
Peak outputW90
Peak power ratekW/s147
Peak currentArms19
Continuous rated current (※3)Arms3.5
Back EMF constantV/krpm31
Torque constant (at 25℃)Nm/Arms0.30
Winding resistance (line-to-line, 25℃)Ω1.8
Winding inductance (line-to-line)mH3.3
Rotor polesP20
Max encoder resolution (※4)P/RIncremental: 2,592,000 P/R
Absolute: 2,097,152 (21 bit)
Moment of inertia (J=GD²/4)kg·cm²1.16
Allowable axial loadN500
Allowable momentNm3
Bi-directional repeatabilitypulse±1
Axial runoutμm20 (standard)
5 (high-precision option: add “R” to model)
Masskg0.86
Recommended driversMC-200-7220 / MC-200C-6018
Other collaboration amplifiers
Reference heat sink225 × 225 × 10 aluminum
  • (※1) At 24 V, peak torque differs. Please contact us.
  • (※2) If you require a specific target speed, please contact us.
  • (※3) Continuous rated current measured at 40℃ ambient with the reference heat sink attached to the motor.
  • If you need a different resolution, please contact us.

Drivers

ManufacturerDriver (amplifier) modelInterfacePowerFeatures
MTLMC-200-7220APulse train, USBDC24/48 VCompact general-purpose
MC-200-7220BEtherCAT, USBDC24/48 VCompact general-purpose
MC-200-7220DSPI, USBDC24/48 VCompact general-purpose
MC-200C-6018DSPI, USBDC24/48 VUltra-compact
Mitsubishi ElectricMR-J4-40A-RJJ001
MR-J4-60A-RJJ001		Pulse trainAC200 VCollaboration-specific
MR-J4-40B-RJJ001
MR-J4-60B-RJJ001		SSCNET III/HAC200 VCollaboration-specific
PanasonicMMDHT2B09NL1RTEXDC48 VCompact
MCDLT35NMRTEXAC200 VMulti-function
MCDLT35BMEtherCATAC200 VMulti-function
  • Mitsubishi Electric and Panasonic amplifiers are not sold by us. Please contact each company’s distributor.
  • The Mitsubishi J4 collaboration supports μDD motors with incremental encoders only.

Connector Cables & Connection Options

MC-200-7220A (※1) / MC-200-7220B / MC-200-7220D / MC-200C-6018D (※2)
DescriptionPart No.Cable length
Power connector cableCN1 cable (4.2) 1M-TE1.0 m
Motor extension connector cableCN2 flexible cable (4.2) 0.7M0.7 m
CN2 flexible cable (4.2) 2.7M2.7 m
CN2 flexible cable (4.2) 4.7M4.7 m
Encoder extension connector cableCN3 flexible cable (4.2) 0.7M0.7 m
CN3 flexible cable (4.2) 2.7M2.7 m
CN3 flexible cable (4.2) 4.7M4.7 m
mini USB cableCN5 cable1.0 m
Mitsubishi Electric MR-J4-40A-RJJ001 / MR-J4-40B-RJJ001 / MR-J4-60A-RJJ001 / MR-J4-60B-RJJ001
DescriptionPart No.Cable length
Motor extension connector cableCN2 flexible cable (4.2) 0.7M0.7 m
CN2 flexible cable (4.2) 2.7M2.7 m
CN2 flexible cable (4.2) 4.7M4.7 m
Motor conversion connector cableCN2 flexible cable (4.2) 0.2M-(CF)0.2 m
Encoder extension connector cableCN3 flexible cable (4.2) 0.7M0.7 m
CN3 flexible cable (4.2) 2.7M2.7 m
CN3 flexible cable (4.2) 4.7M4.7 m
Encoder conversion connector cableCN3 flexible cable (4.2) 0.2M-TE (J4)0.2 m
mini USB cableCN5 cable1.0 m
Panasonic MMDHT2B09NL1
DescriptionPart No.Cable length
Motor extension connector cableCN2 flexible cable (4.2) 0.7M0.7 m
CN2 flexible cable (4.2) 2.7M2.7 m
CN2 flexible cable (4.2) 4.7M4.7 m
Motor conversion connector cableCN2 flexible cable (4.2) 0.2M-TE (M frame)0.2 m
Encoder extension connector cableCN3 flexible cable (4.2) 0.7M0.7 m
CN3 flexible cable (4.2) 2.7M2.7 m
CN3 flexible cable (4.2) 4.7M4.7 m
Encoder conversion connector cableCN3 flexible cable (5.6) 0.2M-JST (MINAS)0.2 m
mini USB cableCN5 cable1.0 m
Panasonic MCDLT35NM / MCDLT35BM
DescriptionPart No.Cable length
Motor extension connector cableCN2 flexible cable (4.2) 0.7M0.7 m
CN2 flexible cable (4.2) 2.7M2.7 m
CN2 flexible cable (4.2) 4.7M4.7 m
Motor conversion connector cableCN2 flexible cable (4.2) 0.2M-(CF)0.2 m
Encoder extension connector cableCN3 flexible cable (4.2) 0.7M0.7 m
CN3 flexible cable (4.2) 2.7M2.7 m
CN3 flexible cable (4.2) 4.7M4.7 m
Encoder conversion connector cable
For incremental encoder		CN3 flexible cable (5.6) 0.2M-JST (MINAS)0.2 m
Encoder conversion board unit
For absolute encoder		MFC-10P0.2 m
mini USB cableCN5 cable1.0 m
  • (※1) For MC-200-7220A, please prepare the CN4 connector and cable on the user side. (Connector type: 10136-3000 PE)
  • (※2) For MC-200C, CN1/CN4 connector cables and CN2/CN3 conversion cables are included.

Option Examples

MC-200-7220A

MC-200-7220D

MC-200C-6018D
