Specifications

Frame diameterφ70 mm
Body length31.5 / 37.5 / 43.5 mm
Peak torque1.0 / 2.2 / 3.1 N·m
Max speed200 rpm
Standard resolution2,592,000 P/R (after ×4), 21 bit
Through-hole diameterφ25 mm
ModelMDH-7006MDH-7012MDH-7018
L1 length (mm)31.537.543.5

Dimensions

MDH-70

Speed & Torque

MDH-7006
MDH-7012
MDH-7018

Note: The maximum rotational speed is limited by the encoder response frequency. Reducing the encoder resolution can extend the usable speed range.

UnitMDH-7006MDH-7012MDH-7018
Supply voltage (driver input)DCV24 (※1) / 48
Max speed (※2)rpm200
Rated speedrpm200
Peak torqueNm1.02.23.1
Continuous stall torqueNm0.360.661.00
Continuous rated torqueNm0.360.661.00
Peak outputW306090
Peak power ratekW/s2483147
Peak currentArms131619
Continuous rated current (※3)Arms2.83.03.5
Back EMF constantV/krpm132331
Torque constant (at 25℃)Nm/Arms0.130.220.30
Winding resistance (line-to-line, 25℃)Ω2.11.91.8
Winding inductance (line-to-line)mH2.63.13.3
Rotor polesP20
Max encoder resolution (※4)P/RIncremental: 2,592,000 (after ×4)
Absolute: 2,097,152 (21 bit)
Rotor inertia Jkg·cm²0.650.820.99
Allowable radial load FrN500
Allowable axial load FaN250
Allowable momentNm13.216.018.8
Bi-directional repeatabilitypulse±1
Masskg0.530.650.77
Recommended driversMC-200-7220 / MC-200C-6018
Reference heat sink225 × 225 × 10 aluminum
  • (※1) At 24 V, peak torque differs. Please contact us.
  • (※2) If you require a specific target speed, please contact us.
  • (※3) Continuous rated current measured at 40℃ ambient with the reference heat sink attached to the motor.
  • (※4) If you require a different encoder resolution, please contact us.

Drivers

ManufacturerDriver (amplifier) modelInterfacePowerFeatures
MTLMC-200-7220APulse train, USBDC24 / 48 VCompact general-purpose
MC-200-7220DSPI, USBDC24 / 48 VCompact general-purpose
MC-200C-6018DSPI, USBDC24 / 48 VUltra-compact
Mitsubishi ElectricMR-J4W2-0303B6-MX940J〇〇SSCNET III/HDC48 V2-axis integrated
MR-J4-40A-RJJ001
MR-J4-60A-RJJ001		Pulse trainAC200 VCollaboration-specific
MR-J4-40B-RJJ001
MR-J4-60B-RJJ001		SSCNET III/HAC200 VCollaboration-specific
PanasonicMMDHT2B09NL1RTEXDC48 VCompact
MCDLT35NMRTEXAC200 VMulti-function
MCDLT35BMEtherCATAC200 VMulti-function

Connector Cables & Connection Options

MC-200-7220A (※1) / MC-200-7220D / MC-200C-6018D (※2)
DescriptionPart No.Cable length
Power connector cableCN1 cable (4.2) 1M-TE1.0 m
Motor extension connector cableCN2 flexible cable (4.2) 0.7M0.7 m
CN2 flexible cable (4.2) 2.7M2.7 m
CN2 flexible cable (4.2) 4.7M4.7 m
Encoder extension connector cableCN3 flexible cable (4.2) 0.7M0.7 m
CN3 flexible cable (4.2) 2.7M2.7 m
CN3 flexible cable (4.2) 4.7M4.7 m
mini USB cableCN5 cable1.0 m
  • (※1) For MC-200-7220A, please prepare the CN4 connector and cable on the user side. (Connector type: 10136-3000 PE)
  • (※2) For MC-200C, CN1/CN4 connector cables and CN2/CN3 conversion cables are included.
Mitsubishi Electric MR-J4W2-0303B6-MX940J〇〇
DescriptionPart No.Cable length
Motor extension connector cableCN2 flexible cable (4.2) 0.7M0.7 m
CN2 flexible cable (4.2) 2.7M2.7 m
CN2 flexible cable (4.2) 4.7M4.7 m
Motor conversion connector cableCN2 flexible cable (4.2) 0.2M-(CF)0.2 m
Encoder extension connector cableCN3 flexible cable (4.2) 0.7M0.7 m
CN3 flexible cable (4.2) 2.7M2.7 m
CN3 flexible cable (4.2) 4.7M4.7 m
Encoder conversion connector cableCN3 flexible cable (4.2) 0.2M-TE (J4W2)0.2 m
mini USB cableCN5 cable1.0 m
Mitsubishi Electric MR-J4-40A-RJJ001 / MR-J4-40B-RJJ001 / MR-J4-60A-RJJ001 / MR-J4-60B-RJJ001
DescriptionPart No.Cable length
Motor extension connector cableCN2 flexible cable (4.2) 0.7M0.7 m
CN2 flexible cable (4.2) 2.7M2.7 m
CN2 flexible cable (4.2) 4.7M4.7 m
Motor conversion connector cableCN2 flexible cable (4.2) 0.2M-(CF)0.2 m
Encoder extension connector cableCN3 flexible cable (4.2) 0.7M0.7 m
CN3 flexible cable (4.2) 2.7M2.7 m
CN3 flexible cable (4.2) 4.7M4.7 m
Encoder conversion connector cableCN3 flexible cable (4.2) 0.2M-TE (J4)0.2 m
mini USB cableCN5 cable1.0 m
Panasonic MMDHT2B09NL1
DescriptionPart No.Cable length
Motor extension connector cableCN2 flexible cable (4.2) 0.7M0.7 m
CN2 flexible cable (4.2) 2.7M2.7 m
CN2 flexible cable (4.2) 4.7M4.7 m
Motor conversion connector cableCN2 flexible cable (4.2) 0.2M-TE (M frame)0.2 m
Encoder extension connector cableCN3 flexible cable (4.2) 0.7M0.7 m
CN3 flexible cable (4.2) 2.7M2.7 m
CN3 flexible cable (4.2) 4.7M4.7 m
Encoder conversion connector cableCN3 flexible cable (5.6) 0.2M-JST (MINAS)0.2 m
mini USB cableCN5 cable1.0 m
Panasonic MCDLT35NM / MCDLT35BM
DescriptionPart No.Cable length
Motor extension connector cableCN2 flexible cable (4.2) 0.7M0.7 m
CN2 flexible cable (4.2) 2.7M2.7 m
CN2 flexible cable (4.2) 4.7M4.7 m
Motor conversion connector cableCN2 flexible cable (4.2) 0.2M-(CF)0.2 m
Encoder extension connector cableCN3 flexible cable (4.2) 0.7M0.7 m
CN3 flexible cable (4.2) 2.7M2.7 m
CN3 flexible cable (4.2) 4.7M4.7 m
Encoder conversion connector cable
For incremental encoder		CN3 flexible cable (5.6) 0.2M-JST (MINAS)0.2 m
Encoder conversion board unit
For absolute encoder		MFC-10P0.2 m
mini USB cableCN5 cable1.0 m

Option Examples

MC-200-7220A

MC-200-7220D

MC-200C-6018D

Support

We are committed to supporting you so you can use our products with confidence.

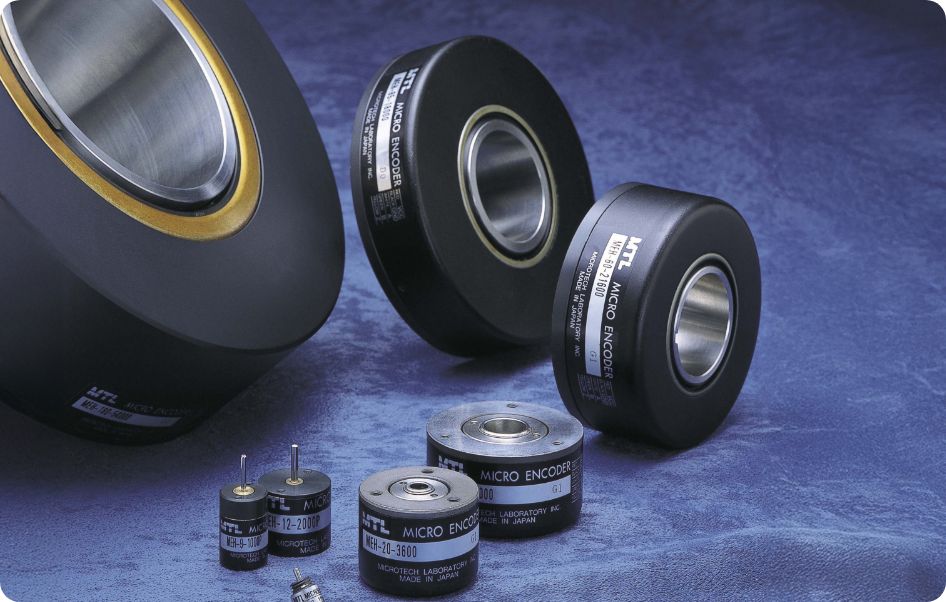

  • Comprehensive after-sales support
